Parameter Configuration

Parameter Configuration

The SDK can access and configure the device parameters via GenICam Standard Protocol, and provides a set of parameter configuration APIs commonly used for cameras and frame grabbers to get and set parameter nodes of 6 types (integer, enumeration, float, boolean, string, and command).

This chapter includes:

• Node Name and Node Type Search
• Node Getting and Setting
• Exclusive Configuration of GigE Cameras
• Exclusive Configuration of U3V Cameras
• Exclusive Configuration of Serial Port Devices

Node Name and Node Type Search

APIs of getting/setting nodes require configuring the node name and node type.

Therefore, before calling these APIs, you need to get the node name and node type via search on the client.

1. Connect to the device via the client.

2. Select a certain feature parameter on the client feature tree to view the parameter node information below the feature tree.

   Note

   If the client version is 4.4.0 or later, you can check calling example of node.

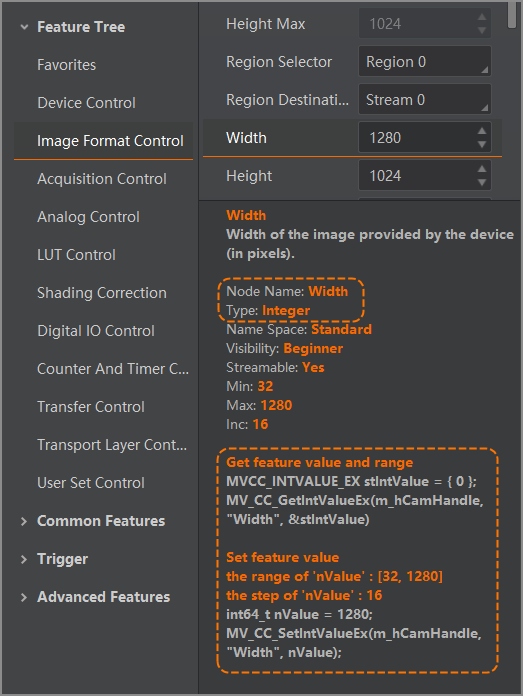

   The following is an example of the parameter Width.



Note

For more details, refer to the client user manual.

Node Getting and Setting

Refer to the sample code in this chapter to get and set node value in your program.

You can configure parameter nodes of 6 types: integer, enumeration, float, boolean, string, and command.

• Integer Node:

  • Call MV_CC_GetIntValueEx() to get integer node.
  • Call MV_CC_SetIntValueEx() to set integer node.

  const char* strNodeName = "Width";

  // Get integer node
  MVCC_INTVALUE_EX stIntValue;
  int nRet = MV_CC_GetIntValueEx(handle, strNodeName ,&stIntValue);
  Check(nRet);

  // Set integer node
  nRet = MV_CC_SetIntValueEx(handle, strNodeName ,stIntValue.nCurValue);
  Check(nRet);




• Enumeration Node:

  • Call MV_CC_GetEnumValue() or MV_CC_GetEnumValueEx() to get enumeration node.
  • Call MV_CC_SetEnumValue() to set enumeration node.
  • Call MV_CC_GetEnumEntrySymbolic() to get symbol specified by enumeration node.
  • Call MV_CC_SetEnumValueByString() to set enumeration attribute value.

  const char* strNodeName = "PixelFormat";
  MVCC_ENUMENTRY stEnumEntry;
  MVCC_ENUMVALUE   stEnumValue;

  // Get enumeration node
  nRet = MV_CC_GetEnumValue(handle, strNodeName, &stEnumValue);
  Check(nRet);
  // Get symbol specified by enumeration node
  stEnumEntry.nValue = stEnumValue.nCurValue;
  nRet = MV_CC_GetEnumEntrySymbolic(handle, strNodeName, &stEnumEntry);
  Check(nRet);

  // Get enumeration node
  nRet = MV_CC_SetEnumValue(handle, strNodeName ,stEnumValue.nCurValue);
  Check(nRet);
  // Set enumeration attribute value
  const char* strValue = "Mono8"
  nRet = MV_CC_SetEnumValueByString (handle, strNodeName, strValue);
  Check(nRet);




• Float Node:

  • Call MV_CC_GetFloatValue() to get float node.
  • Call ::IParameters.SetCommandValue() to set float node.

  const char* strNodeName = "ExposureTime";

  // Get float node
  MVCC_FLOATVALUE FloatValue;
  int nRet = MV_CC_GetFloatValue(handle, strNodeName , &FloatValue);
  Check(nRet);

  // Set float node
  nRet = MV_CC_SetFloatValue(handle, strNodeName , FloatValue.fCurValue);
  Check(nRet);




• Boolean Node:

  • Call MV_CC_GetBoolValue() to get boolean node.
  • Call MV_CC_SetBoolValue() to set boolean node.

  const char* strNodeName = "GammaEnable";

  // Get boolean node
  bool bValue = false;
  int nRet = MV_CC_GetBoolValue(handle, strNodeName , &bValue);
  Check(nRet);

  // Set boolean node
  nRet = MV_CC_SetBoolValue(handle, strNodeName , bValue);
  Check(nRet);




• String Node:

  • Call MV_CC_GetStringValue() to get string node.
  • Call MV_CC_SetStringValue() to set string node.

  const char* strNodeName = "DeviceUserID";

  // Get string node
  MVCC_STRINGVALUE StringValue;
  int nRet = MV_CC_GetStringValue(handle, strNodeName , &StringValue);
  Check(nRet);

  // Set string node
  nRet = MV_CC_SetStringValue(handle, strNodeName , StringValue.chCurValue);
  Check(nRet);




• Command node: Call MV_CC_SetCommandValue() to set command node.

  const char* strNodeName ="UserSetLoad";

  // Set command node
  nRet = MV_CC_SetCommandValue (handle, strNodeName );
  Check(nRet);




Exclusive Configuration of GigE Cameras

If you are using GigE cameras, you can set optimal packet size, and set resending packet.

• Set Optimal Packet Size

  Before you start grabbing image after opening GigE camera, call MV_CC_GetOptimalPacketSize() to detect current network, and get optimal communication packet size.

  You can configure the packet size of image grabbing with this packet size to maximize bandwidth usage, and improve the transmission speed of image grabbing.

  // Get optimal packet size, and set it for GigE cameras
  if (stDeviceList.pDeviceInfo[nIndex]->nTLayerType == MV_GIGE_DEVICE)
  {
      int nPacketSize = MV_CC_GetOptimalPacketSize(handle);
      if (nPacketSize > 0)
      {
          // Configure the optimal package size for camera
          nRet = MV_CC_SetIntValueEx(handle,"GevSCPSPacketSize",nPacketSize);
          Check(nRet);
      }
  }

• Set Resending Packet

  GigE device communicates data via network, so in some abnormal cases such as network congestion, data packet received from the SDK is incomplete. Resending command can control the device resend the incomplete part.

  Attention

  • Resending packets supported by the camera are available.
  • For occasional network congestion, you can address occasional packet loss through resending.
  • For continuous network congestion, it is recommended to troubleshoot the exception and optimize the network. Enabling resending packet directly may result in worsen network congestion. Use this function with caution.

  • You can refer to the following example, and call MV_GIGE_SetResend() to start resending packet.

    unsigned int bEnable = true;            // 1. Whether to enable resending packet
    unsigned int nMaxResendPercent = 10;    // 2. The maximum resending ratio
    unsigned int nResendTimeout = 50;       // 3. Resending timeout (unit: ms)

    nRet = MV_GIGE_SetResend(handle, bEnable, nMaxResendPercent, nResendTimeout);
    Check(nRet);

    1. bEnable: Whether to enable resending packet
    2. nMaxResendPercent: Configure resending the packet loss of the current frame. Do not resend the exceeding part to avoid worsening network congestion. When this value is set to 100, SDK will resend all packet loss of the current frame.
    3. nResendTimeout: Configure timeout of resending packet. Start counting time when the frame ends. If the counted time exceeds the set timeout, SDK will not request resending this packet loss data.

  • After sending the resending command, you need to resend request if SDK doesn’t receive response of the device and data resent.

    You can refer to the following example, call MV_GIGE_SetResendTimeInterval() to control the interval of single resending packet, and call MV_GIGE_SetResendMaxRetryTimes() to configure maximum resending times.

    // Set the interval of resending packet
    unsigned int nMillisec = 10;
    nRet = MV_GIGE_SetResendTimeInterval(handle, nMillisec);
    Check(nRet);

    // Configure maximum resending times of the resending packet
    unsigned int nRetryTimes = 20;
    nRet  = MV_GIGE_SetResendMaxRetryTimes(handle, nRetryTimes);
    Check(nRet);

    • nMillisec: It refers to the interval between two resending requests for one resending packet (10 ms by default). The shorter the interval is, the more network resources occupied by the resending packet are, increasing the pressure of network and device.
    • nRetryTimes: 20 by default. It represents that for single packet loss data, SDK can request resending command for 20 times at most.

Exclusive Configuration of U3V Cameras

If you are using U3V camera, you can adjust Control Channel, and Stream Channel to address and be compatible with corresponding exception.

• Control channel is used to configure control command. Abnormal control channel may result in slower execution of transmission control command, and therefore, the interface times out and exception messages will be returned.

  You can refer to the following sample code, and call MV_USB_SetSyncTimeOut() to adjust timeout of control channel, so as to be compatible with this type of exception.

  // Receiving timeout (1000 ms by default)
  unsigned int nMills = 1000;

  // Set timeout of sync reading and writing for USB3 vision cameras
  nRet = MV_USB_SetSyncTimeOut(handle,nMils);
  Check(nRet);

• Stream channel is used to configure image grabbing. Insufficient bandwidth of stream channel or system resources may result in transmission failure and resource creation failure.

  You can refer to the following sample code, and call MV_USB_SetTransferSize() to adjust the packet size, or call MV_USB_SetTransferWays() to adjust number of U3V streams, so as to reduce resourced occupied by SDK.

  // Set the maximum data packet size of U3V camera image grabbing
  unsigned int nTransferSize = 1*1024*1024;   // 1MB by default
  nRet = MV_USB_SetTransferSize(handle,nTransferSize);
  Check(nRet);

  // Set number of buffers for U3V stream channels of the SDK
  Unsigned int nTransferWay = 2;
  nRet = MV_USB_SetTransferWays(handle,nTransferWay);
  Check(nRet);

Exclusive Configuration of Serial Port Devices

Serial port device is connected via serial port, and the communication protocol complies with GenCP. For this type of device, you can call MV_CAMERALINK_DEVICE() for enumeration.

Note

Serial port devices include light controllers and Camera Link cameras.

When the device communicates through serial ports, you can change the baud rate to improve transmission speed. Details are as follows:

1. Call MV_CAML_GetSupportBaudrates() to get supported baud rate between the device and the host.
2. Call MV_CAML_SetDeviceBaudrate() to set baud rate of the device.

// Get supported baud rate of the host and device
unsigned int nBaudrateAblity = 0;
nRet = MV_CAML_GetSupportBaudrates(handle,&nBaudrateAblity);
Check(nRet);

// Check if it is supported to set baud rate to 115200. If yes, set it to 115200
if (nBaudrateAblity & MV_CAML_BAUDRATE_115200)
{
    nRet = MV_CAML_SetDeviceBaudrate(handle,MV_CAML_BAUDRATE_115200);
    Check(nRet);
}
